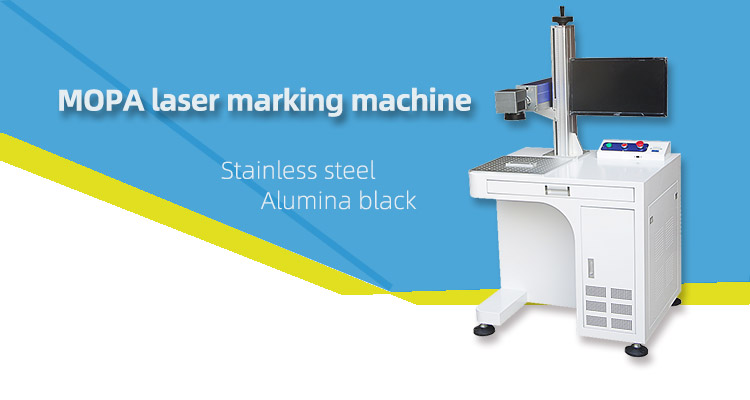

MOPA Laser marking machine Description
MOPA laser marking machine is different from ordinary optical fiber laser marking machine . This laser marking machine adopts adjustable pulse width mode.
It can adjust the frequency to up to 400Khz and directly make aluminum black effect, magnesium aluminum, aluminum oxide, all kinds of aluminum are universal.
Suitable materials for MOPA Laser marking machine
Aluminum blackening effect, metal and a variety of non-metallic materials, high hardness alloy, oxide, electroplating, coating, ABS, epoxy resin, ink,
engineering plastics and so on.
MOPA Laser marking machine to the industry
Plastic transparent key, IC chip, digital product parts, jewelry, sanitary ware, measuring tools, watch glasses, electrical appliances, electronic components,
hardware accessories, hardware tools, mobile phone communication parts, auto parts, plastic products, medical equipment, building materials and other
high-precision product identification.
model
LS-FA120 LS-FA130
Laser type
Fiber laser
Laser wave length
1064nm
Laser power
20w/30w
Frequency Range
10-400KHz
Pulse width range
8-200ns
Marking speed
≤7000mm/s
Minimum line width
0.02mm
Smaalest character
0.05mm
Repeat accuracy
±0.1μm
Marking range
110mm×110mm(optional)
cooling method
Air cooling
working power
AC220V/50Hz
